AVE106M16B12T-F
Manufacturer:
Cornell Dubilier Electronics
Mfr.Part #:
AVE106M16B12T-F
Datasheet:
Description:

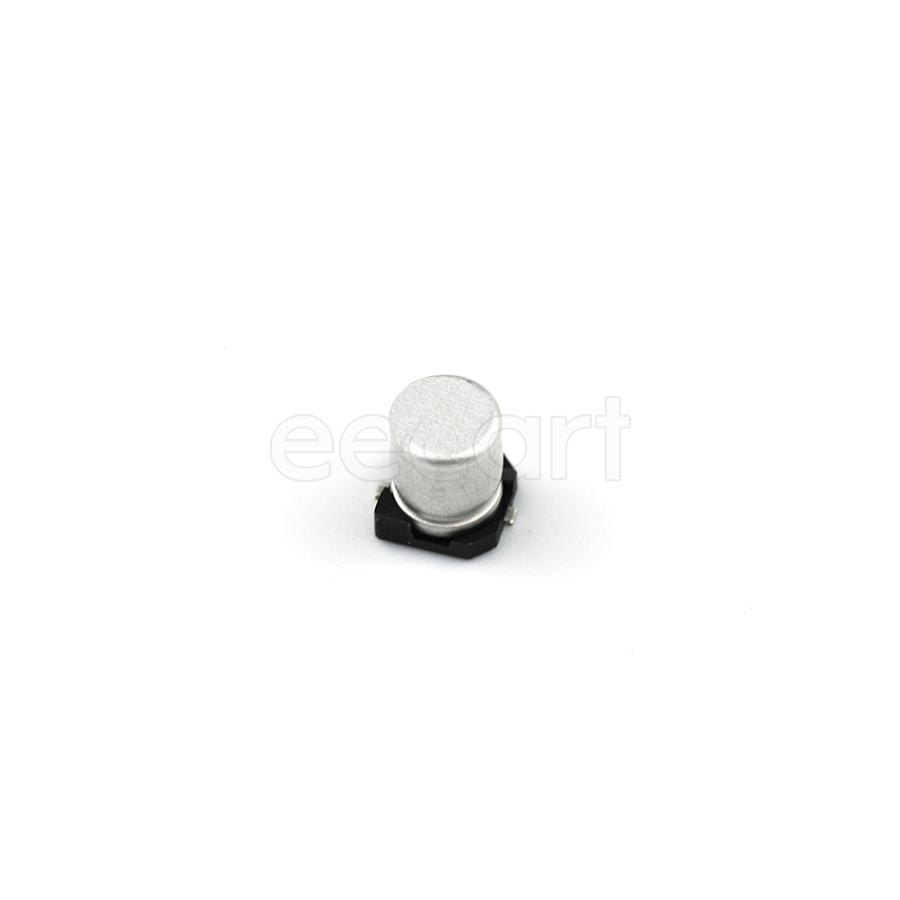

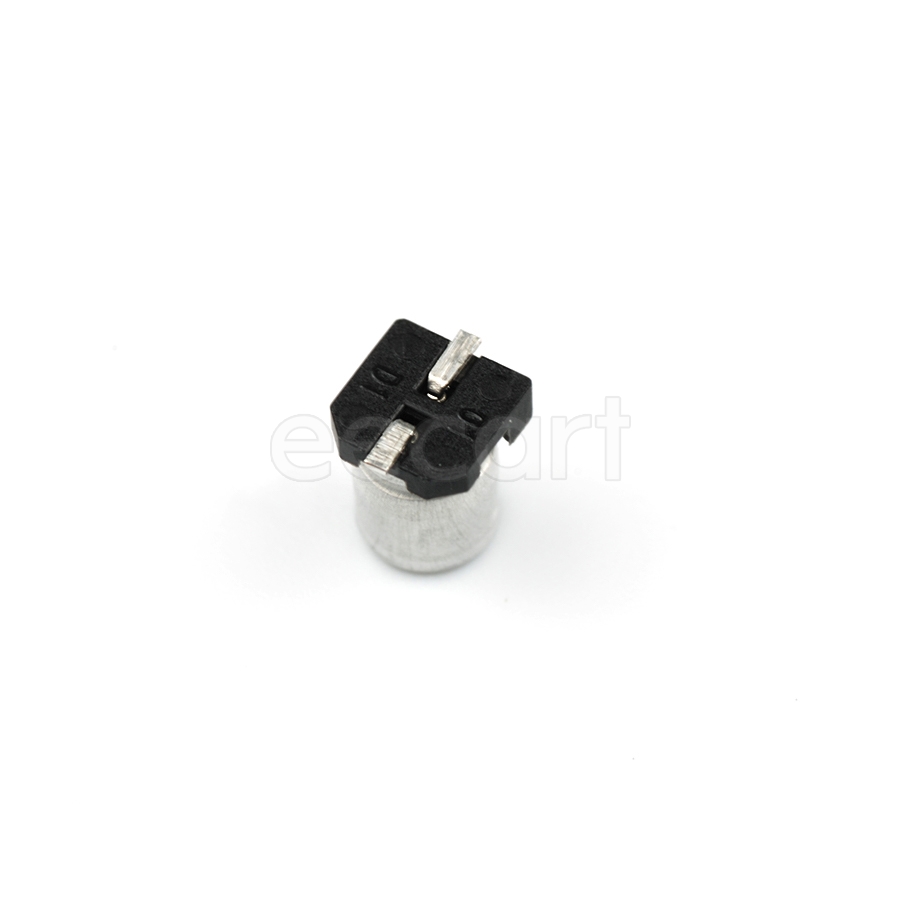

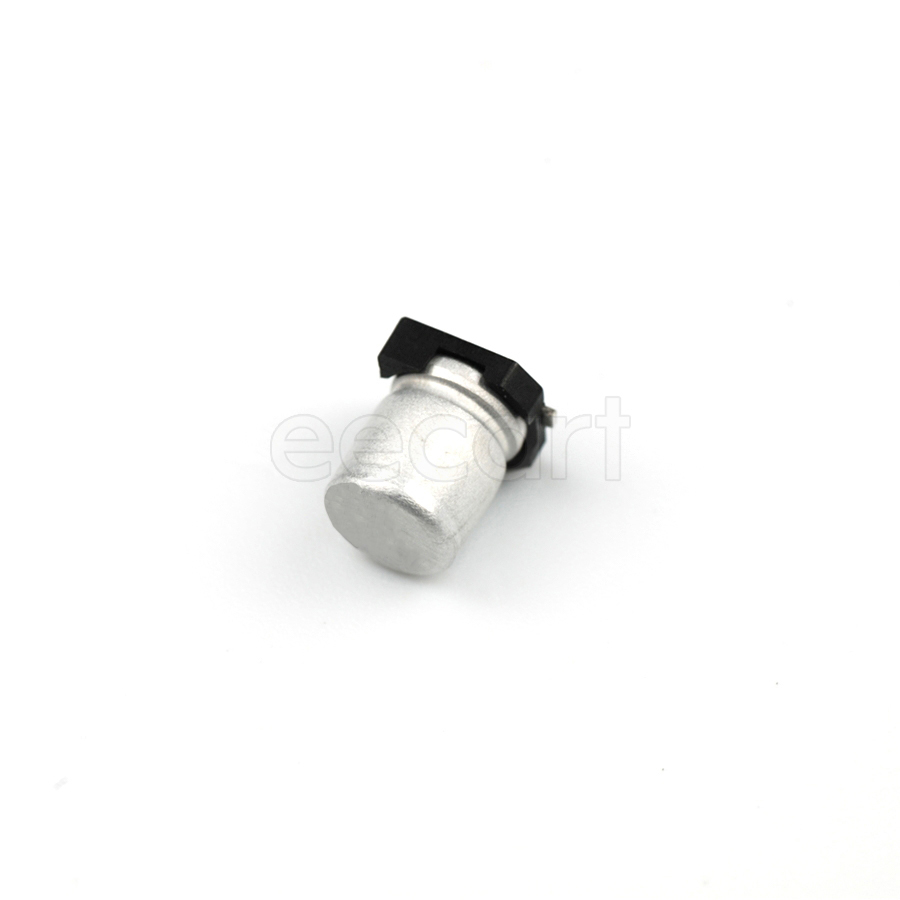

Aluminum Electrolytic Capacitors 4.00mmD×5.30mmH SMD/SMT 10 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 33.16 Ω |
| Life (Hours) | 2000 Hours |
| Ripple Current | 26 mA |
| Height - Seated (Max) | 5.31 mm |
| Length | 5.3 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.2 % |
| Height | 4.3 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 1 mm |
| Voltage | 16 V |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Ripple Current (AC) | 26 mA |
| Lead Length | 2 mm |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 26 mA @ 120 Hz |
